EJ100 Toggle

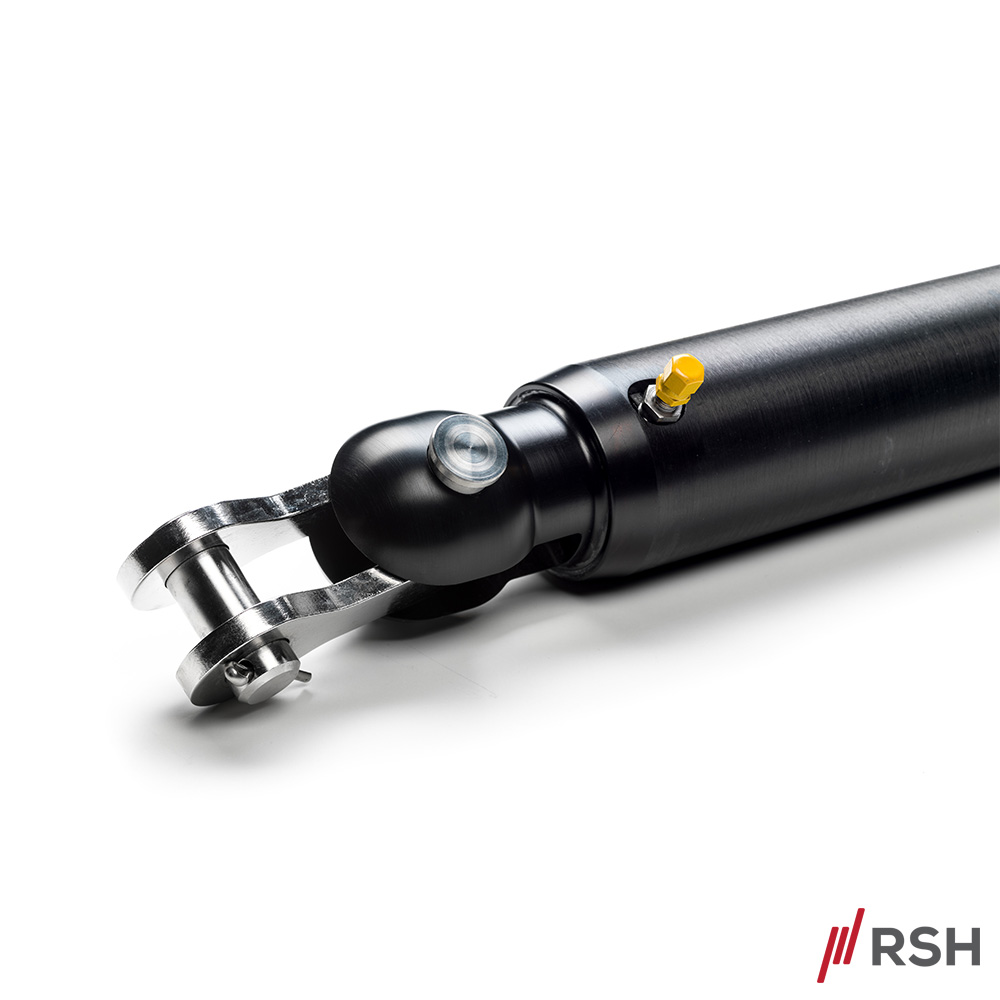

The toggle between the hull and the cylinder allows perfect alignment of the load in all working conditions in the various settings.
A simple expedient to minimizes the side loads.
Data sheet
Tecnical Data

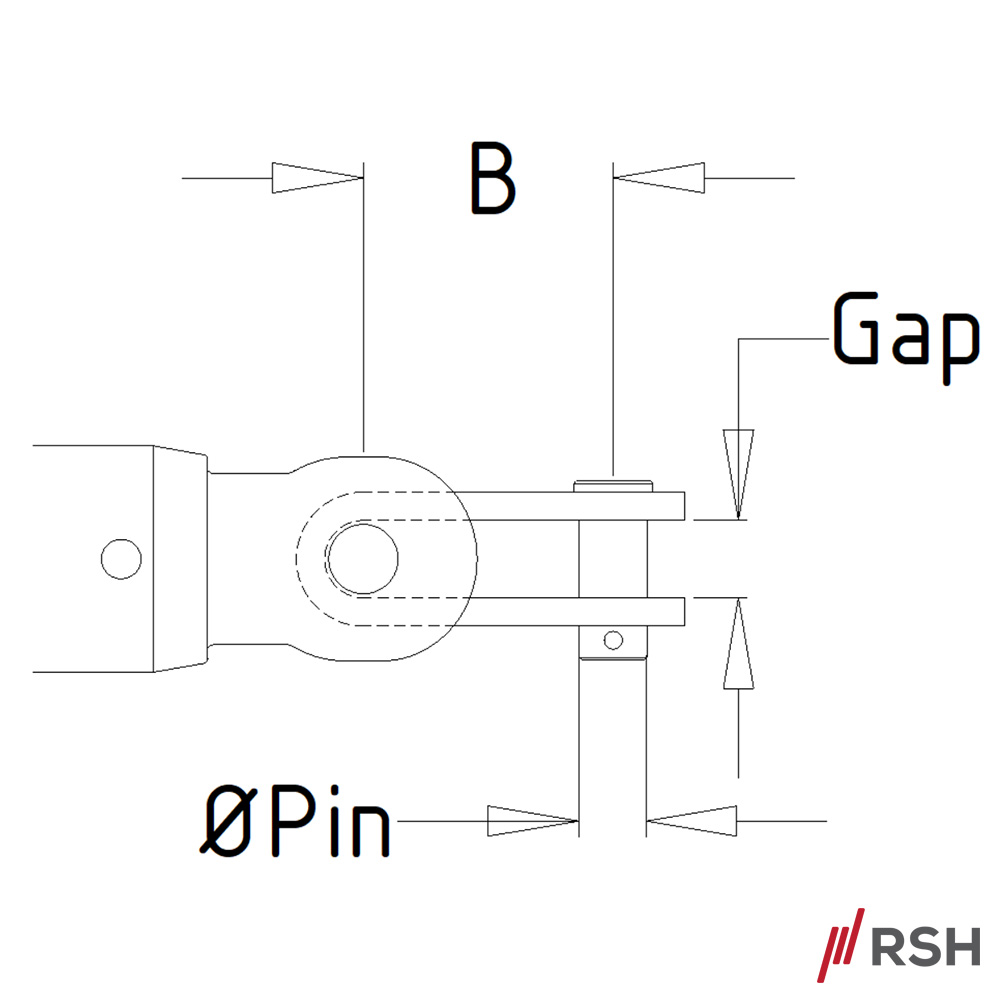

| Ref. | Description | Gap / Pin (in) | B (mm) |
|---|---|---|---|
| EJ100-10 | -10 Cylinder toggle | 1/2 | 50 |
| EJ100-17 | -12/-17 Cylinder toggle | 5/8 | 60 |
| EJ100-22 | -22 Cylinder toggle | 3/4 | 70 |
| EJ100-30 | -30 Cylinder toggle | 7/8 | 80 |
| EJ100-40 | -40 Cylinder toggle | 1 | 90 |
| EJ100-60 | -60 Cylinder toggle | 1 1/4 | 115 |
| EJ100-90 | -90 Cylinder toggle | 1 3/8 | 115 |
