E370 Eco Integral Backstay Adjuster
To respect the environment, mineral oil has been replaced by the latest generation of biodegradable fluid across the entire RSH adjusters line.
The RSH Integral adjuster bodies and fittings are made of black hard-coated aluminum and AISI 316 steel for the rod.
Easy to operate, featuring a prominent positioned pressure gauge, enabling fast and accurate reading of tension values.
The standard range is optimized for work with the last generation of yacht layout.
Data sheetTecnical Data

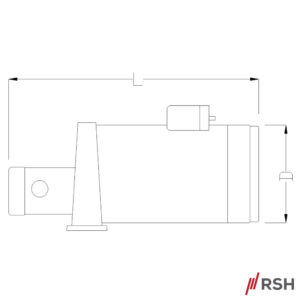

| Ref. | Description | Max pull force @ 5000PSI | Body Ø (mm) | Gap / Pin (in) | L Open (mm) | l Closed (mm) | Stroke (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| E370-ECO-010 | Integral adjuster -10 ECO | 2180 | 45 | 1/2 | 1198 | 843 | 355 | 3.88 |
| E370-ECO-012 | Integral adjuster -12 ECO | 3450 | 57 | 5/8 | 1211 | 848 | 363 | 4.54 |
| E370-ECO-017 | Integral adjuster -17 ECO | 3920 | 57 | 5/8 | 1211 | 848 | 363 | 4.54 |
| EJ370-010 | -10 adjuster toggle kit | |||||||
| EJ370-017 | -12/-17 adjuster toggle kit |
